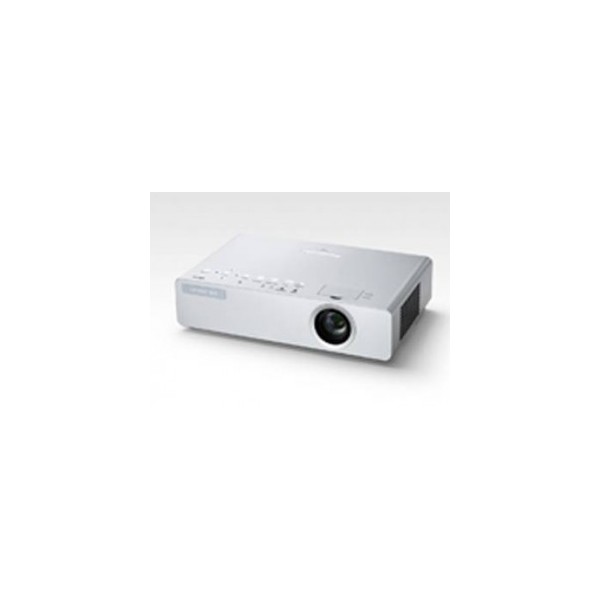

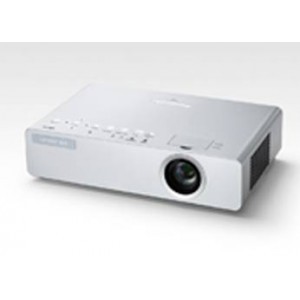

LCD Projector Panasonic PTLB90 Series 3500 Ansi Lumens, 2.96kg, resolusi 1024x768, direct power off, dust resistant, daylight view technology 4th generation.
Tersedia PTLB90E dan PTLB90NT Wireless
Garansi resmi 2 tahun service dan spare part.
Order di atas 10 pcs hubungi 085256305203
Spesifikasi
| PT-LB90NT | PT-LB90 | |||
| Power supply | 100–240 V AC, 50/60 Hz | |||
| Power consumption | 300 W (0.9 W*1 in standby eco mode. 20 W in normal standby mode. 23 W in normal standby mode when set to audio monitor out and with fan stopped.) |
300 W (0.9 W*1 in standby eco mode. 15 W in normal standby mode. 18 W in normal standby mode when set to audio monitor out and with fan stopped.) | ||
| Optical system | Dichroic mirror separation/prism synthesis system | |||
| LCD panel | Panel size | 0.63" (16.00 mm) diagonal, 4:3 aspect ratio | ||
| Display method | Transparent LCD panel (x 3, R/G/B) | |||
| Drive method | Active matrix | |||
| Pixels | 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels | |||
| Pixel configuration | Stripe | |||
| Lens | Manual zoom (1:1–1:1.2), manual focus, F 1.65–1.93, f 18.53–22.18 mm |
|||
| Throw ratio | 1.4 –1.7:1 | |||
| Lamp | 220 W UHM lamp | |||
| Projection size | 33–300 inches/838–7,620 mm diagonally (4:3 aspect ratio) | |||
| Colors | Full color (16,777,216 colors) | |||
| Brightness*2 | 3,500 lumens | |||
| Center-to-corner uniformity ratio*2 |
85% | |||
| Contrast ratio*2 | 500:1 (full on/full off) | |||
| Resolution (RGB) | 1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.) |
|||
| Scanning frequency | RGB | Horizontal: 15–91 kHz, Vertical: 50–85 Hz | ||
| YPBPR | 480i (525i): fH 15.75 kHz; fv 60 Hz 576i (625i): fH 15.63 kHz; fv 50 Hz 480p (525p): fH 31.50 kHz; fv 60 Hz 576p (625p): fH 31.25 kHz; fv 50 Hz 720/60p (750p): fH 45.00 kHz; fv 60 Hz 720/50p (750p): fH 37.50 kHz; fv 50 Hz 1080/60i (1125i): fH 33.75 kHz; fv 60 Hz 1080/50i (1125i): fH 28.13 kHz; fv 50 Hz |
|||
| S-Video/ Video |
NTSC, NTSC4.43, PAL-M, PAL60: fH15.75 kHz; fv 60 Hz PAL, SECAM, PAL-N: fH15.63 kHz; fv 50 Hz |
|||
| Optical axis shift | 5:1 (fixed) | |||
| Keystone correction range | Vertical: approx. ±30° | |||
| On-screen menu | 17 languages: English, French, German, Spanish, Italian, Korean, Russian, Chinese, Japanese, Swedish, Norwegian, Danish, Portuguese, Polish, Hungarian, Czech, and Thai | |||
| Installation | Front/rear, ceiling/desk (menu selection) | |||
| Built-in speakers | Size: 4 x 2 cm x 1, oval Output power: 1.0 W (monaural) |
|||
| Terminals | COMPUTER (RGB) 1 IN | D-sub HD 15-pin (female) x 1 RGB signal: G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible) YPBPR signal: Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms |
||
| COMPUTER (RGB) 2 IN | D-sub HD 15-pin (female) x 1 RGB signal: G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible) YPBPR signal: Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms |
|||
| VIDEO IN | RCA pin x 1, 1.0 V [p-p], 75 ohms | |||
| S-VIDEO IN | Mini DIN 4-pin x 1, Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 ohms | |||
| COMPUTER (RGB) 1/2 AUDIO IN | M3 (L, R) x 1, 0.5 V [rms] | |||
| VIDEO/ S-VIDEO AUDIO IN |
RCA (L, R) x 1, 0.5 V [rms] | |||
| VARIABLE AUDIO OUT | M3 (L, R) x 1, 0 –2.0 V [rms] | |||
| SERIAL | D-sub 9-pin x 1, for external control (RS-232C compliant) | |||
| LAN | RJ-45 x 1, compatible with PJLink™ (class 1), 10BASE-T/100BASE-TX | - | ||
| Power cord length | 2 m (6.6') | |||
| Cabinet material | Molded plastic (PC+ABS) | |||
| Dimensions (W x H x D) | 368 x 88 x 233 mm (14-1/2" x 3-15/32" x 9-3/16")*3 | |||
| Weight*4 | Approx. 2.96 kg (6.5 lbs.) | |||
| Operating environment | Temperature: 0°–40°C (32°–104°F) Humidity: 20%–80% (no condensation) |
|||
| Wireless LAN | Standard | IEEE 802.11b/g (ARIB STD-T66) | - | |
| Modulation | IEEE 802.11b: Direct sequence spread spectrum (DS-SS) system IEEE 802.11g: Orthogonal frequency division multiplex (OFDM) system |
- | ||
| Transmission system |
IEEE 802.11b: CCK (11/5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps) IEEE 802.11g: 64-QAM (54/48 Mbps), 16-QAM (36/24 Mbps), QPSK (18/12 Mbps), BPSK (9/6 Mbps) |
- | ||
| Transmission speed | IEEE 802.11b: 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps IEEE 802.11g: 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps |
- | ||
| Operating range*5 | Approx. 30 m (98'5") | - | ||
| Frequency range | PT-LB90NTE/LB90NTEA: 2,412 MHz–2,472 MHz PT-LB90NTU: 2,412 MHz–2,462 MHz |
- | ||
| Channels | PT-LB90NTE/LB90NTEA: 1–13 ch PT-LB90NTU: 1–11 ch |
- | ||
| Supplied accessories | Power cord, Power cord secure lock, Wireless remote control, Batteries for remote control (AA type for North/South America, R6/LR6 type for Europe/Asia) x 2, VGA cable for RGB signals (1.8 m/5'11"), Wireless Manager ME 5.5 (CD-ROM), Carrying bag | Power cord, Power cord secure lock, Wireless remote control, Batteries for remote control (AA type for North/South America, R6/LR6 type for Europe/Asia) x 2, VGA cable for RGB signals (1.8 m/5'11"), Carrying bag | ||
| Optional accessories | ET-LAB80 | Replacement lamp unit | ||
| ET-PKB80 | Ceiling mount bracket | |||
| *1: | In standby eco mode, network functions such as Standby On via LAN are not available, and only certain commands can be received from RS-232C control. |
| *2: | Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. |
| *3: | Protruding parts not included. |
| *4: | Average value. May differ depending on models. |
| *5: | Operation range differs depending on environments. |
(PT-LB90NT) To use network functions, a PC is required that meets the conditions given below:
| OS: | Microsoft Windows® 2000 Professional SP4 / XP Professional / XP Home Edition / XP Tablet PC Edition 2005 / Vista® Ultimate 64bit / Vista® Ultimate 32bit / Vista® Business 64bit / Vista® Business 32bit / Vista® Home Premium 64bit / Vista® Home Premium 32bit / Vista® Home Basic 64bit / Vista® Home Basic 32bit / 7 Ultimate 64bit / 7 Ultimate 32bit / 7 Professional 64bit / 7 Professional 32bit / 7 Home Premium 64bit / 7 Home Premium 32bit Apple Mac OS X Ver10.4 / Ver10.5 / Ver10.6* * Operation is guaranteed only with preinstalled or clean-installed operating systems. |
| Web browser: | Windows®: Internet Explorer® 6.0 / 7.0 / 8.0 Macintosh: Safari 2.0 / 3.0 / 4.0 |
| CPU: | Windows®: Intel® Pentium® III or higher, or other compatible processor (1 GHz or higher is recommended.) Mac OS X : 1 GHz or higher Power PC G4, or 1.8 GHz or higher Intel® Core™ Processor |
| Memory: | 256 MB or more (512 MB or higher is recommended for Mac OS X) |
| Free hard disk space: | 60 MB or more |
| CD-ROM drive: | CD-ROM drive or DVD drive |
| Wireless LAN: | IEEE 802.11b/g compatible (built-in wireless LAN system or external IEEE 802.11b/g LAN card must be installed and running normally.) NOTE: Some IEEE 802.11g/b wireless LAN may not allow connection to the projector. For Mac OS, Built-in IEEE 802.11b/g wireless LAN adapter must be installed and running normally. |
NOTES ON USE
| • | The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illuminate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on individual lamp characteristics and usage conditions. |
| • | The brightness of the lamp will gradually decrease with use. |
| • | The projector includes consumable parts. The frequency of replacement for the lamp and other consumable parts will increase if the projector is subjected to extended, continuous use. For details, please consult a service representative. |
