General |
Aspect Ratio |
4:3 (Native) 16:9 |
Brightness (ANSI Lumens) |
5000 ANSI Lumens (Normal) 4000 ANSI Lumens (Eco Mode) |
Contrast Ratio |
500:1 |
Display Type |
0.74" LCD x 3 |
Resolution (Native / Max) |
XGA (1024 x 768) UXGA (1600 x 1200) |
Video Compatibility |
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM, HDTV (480i, 480p, 576i, 576p, 720p, 1080i) |
Projection Lens |
F = 1.7 ~ 2.2 f = 24.4 x 32.5mm |
Size |
Dimensions (WxHxD) |
15.7in. x 5.9in. x 14.1in. (39.88cm x 14.99cm x 35.81cm) |
Weight |
16.1 lbs. (7.3 kg) |
Connectivity |

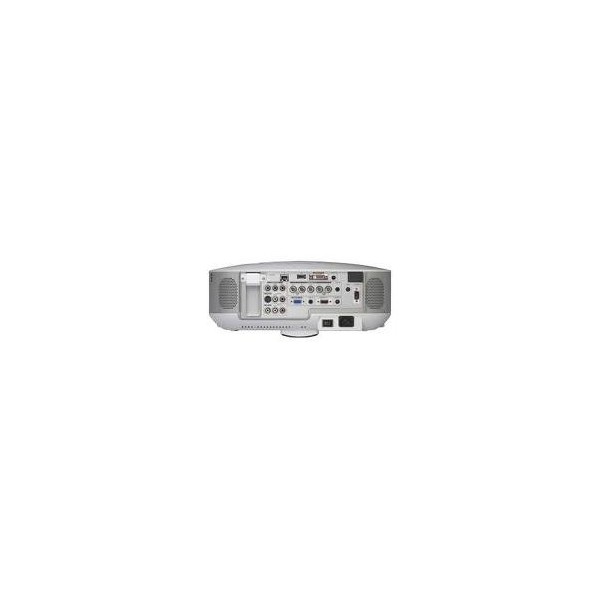

Inputs |
1 x RGB D-Sub 15pin 5 x BNC 1 x DVI-I 1 x Composite 1 x S-Video 1 x Component 2 x RCA Audio 3 x Stereo Mini Jack |
Outputs |
1 x RGB D-Sub 15pin 1 x Stereo Mini Jack |
Audio |
1 x 5W Stereo Speaker |
Control |
1 x RS-232C 1 x IR 1 x RS-45 LAN 1 x 802.11b/g Wireless |
Operation |
Power Supply |
100 ~ 240 V / 50 ~ 60 Hz |
Power Consumption |
490W |
Approvals |
UL 1950, FCC Class B, CSA950, C-UL, NOM |
Audible Noise |
38 dB (Normal) 31 dB (Eco mode) |
Operating Temperature |
41°F ~ 104°F (5°C ~ 40°C) |
Operating Humidity |
20 ~ 80% (Non-Condensing) |
Storage Temperature |
14°F ~ 122°F (-10°C ~ 50°C) |
Storage Humidity |
20 ~ 80% (Non-Condensing) |
Projection Lens |
Lamp Type |
330W |
Lamp Life |
2000 hrs (Normal) 3000 hrs (Eco Mode) |
Lens Shift |
Vertical: +/- 50% Horizontal: +/- 10% |
Projection Distance |
2.5ft. ~ 68.5ft. (0.76m ~ 20.88m) |
Projection Mode |
Front, Rear, Ceiling, Rear & Ceiling |
Projection Screen Size (Diagonal) |
25in. ~ 500in. (63.5cm ~ 1270cm) |
Throw Ratio |
1.5 ~ 2.0:1 |
Digital Zoom |
64x |
Optical Zoom |
1.33:1 |
Horizonal Keystone Correction |
+/- 40 Degrees |
Vertical Keystone Correction |
+/- 30 Degrees |
Other |
H-Sync Range |
15 ~ 108 kHz |
V-Sync Range |
48 ~ 120 Hz |
Features |
Wired and Wireless Network Capabilities Stacking Capabilities HQV Video Processing Windows Network Projector Windows Network Drive Function Windows Media Connection Function Remote Desktop Connection Remote Diagnostics 3D Reform with Geometry Correction Lamp Saver Technology Macintosh Compatible AutoSense 3D Reform Wall Color Correction Advanced AccuBlend Kensington Lock Sleep Timer Eco Mode |
In The Box |
Items |
Remote Control Remote Control Cable Batteries Power Cord RGB Cable Lens Cap User Manual CD-ROM Quick Start Guide Product Registration Card Wired and Wireless Network Setup Guide PC Card Lock Lens Anti-Theft Screw |
