Termasuk dalam paket:

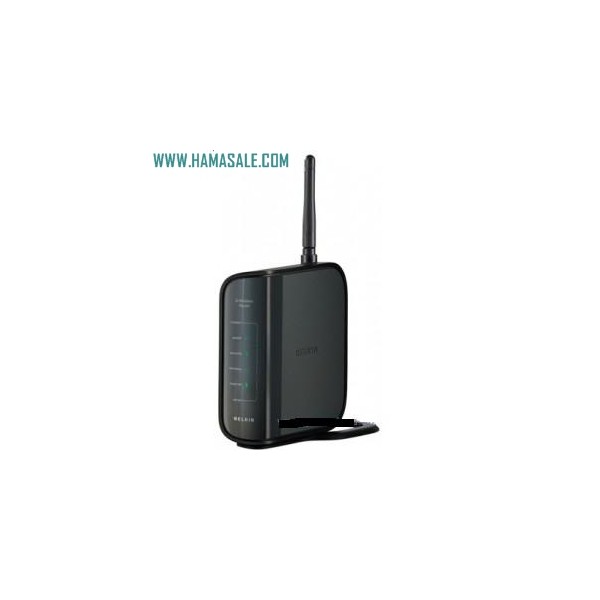

• G-Wireless Router
• Quick Installation Guide
• Setup Assitant CD (instalasi dan setup sangat mudah!)
• User manual di dalam CD
• Power Suppply
• 1 Kabel LAN RJ45

Product Features and Technical Details

Product Features

Technical Details

• Model Number: F5D7234-4
• Wireless technologies: 802.11g, 802.11b
• Wireless standards: IEEE 802.11g; IEEE 802.11b; IEEE 802.3u; IEEE 802.3
• Ports: 4 x computer/device ports (RJ-45), 1 x modem port (RJ-45)
• Operating range: Up to 400 feet
• Wireless security: WPA, WPA2, Wi-Fi Protected Setup, 64-bit and 128-bit WEP encryption
• VPN support: PPTP; IPSec pass-through
• System requirements: Broadband Internet connection with RJ45 (Ethernet connection); at least one computer with an installed network interface card; TCP/IP networking protocol installed on each computer; Internet browser
• System requirements for software: Windows XP/Vista, Mac OS X v10.4 or v10.5, Linux; 64 MB RAM minimum; Internet browser (Internet Explorer 6.0+, Firefox 1.0+, or Safari 2.0+)
• Warranty: 1-year limited warranty, serive life time warranty
• What's in the Box: Wireless G Router, quick installation guide, Personal Network Assistant CD, user manual on CD, power supply, RJ45 Ethernet cable

Cara instalasi:

1. Colokan Kabel dari Modem ADSL anda ke Belkin Wireless G Router (Slot yang warna kuning)
2. Colokkan kabel LAN RJ 45 (Kabel Biru) ke PC anda
3. Nyalakan semuanya (PC, ADSL Modem, dan Belkin Wireless Router)
4. Masukkan CD Belkin Assitant
5. Jalankan instalasi langkah demi langkah sampai selesai
6. Jika sudah selesai masuk ke 192.168.2.1 (menggunakan browser)
7. Klik Connection Type pilih Dynamic
8. Klik Channel and SSID, pilih Auto, masukkan nama usaha anda pada SSID misal TOKOELEKTRONIK, pilih broadcast SSISD = Yes

Dan anda sudah dapat menyebar Layanan Internet untuk pengunjung anda.. (sembari promosi nama toko anda)

Terima pendaftaran dan pemasangan Telkom Speedy

KETIK SMS: new<spasi>no telp rumah/kantor/toko(yang mau di pasang speedy)#nama#no HP#paket speedy

kirim ke 085256305203

Paket Speedy unlimited mulai dari Rp. 125.000 per bulan, cukup untuk awal pakai internet anda.

Jasa setting Hot Spot (tanpa password) Rp. 100.000 per 1 SSID (harga penawaran hanya berlaku untuk pengguna Windows, ADSL Speedy wilayah JAKARTA saja)
